Biotechnology and its Applications

1. Chapter at a Glance

Biotechnology, as you would have learnt from the previous chapter, essentially deals with industrial-scale production of biopharmaceuticals and biologicals using genetically modified microbes, fungi, plants and animals. The applications of biotechnology include therapeutics, diagnostics, genetically modified crops for agriculture, processed food, bioremediation, waste treatment and energy production. Three critical research areas of biotechnology are: (i) providing the best catalyst in the form of improved organism, usually a microbe or pure enzyme; (ii) creating optimal conditions through engineering for a catalyst to act; and (iii) downstream processing technologies to purify the protein/organic compound. This chapter covers applications in agriculture (Bt crops, pest-resistant plants by RNA interference), medicine (genetically engineered insulin, gene therapy, molecular diagnosis), transgenic animals, and the ethical issues of GMOs, biopiracy and patents. NEET asks two to three questions every year, mostly on Bt toxin (cry genes), RNAi in tobacco, insulin chains, ADA gene therapy, transgenic animals and GEAC.

2. Biotechnological Applications in Agriculture

Let us take a look at the three options that can be thought for increasing food production: (i) agro-chemical based agriculture; (ii) organic agriculture; and (iii) genetically engineered crop-based agriculture. The Green Revolution succeeded in tripling the food supply, but yet it was not enough to feed the growing human population. Increased yields have partly been due to the use of improved crop varieties, but mainly due to the use of better management practices and use of agrochemicals (fertilisers and pesticides). However, for farmers in the developing world, agrochemicals are often too expensive, and further increases in yield with existing varieties are not possible using conventional breeding. Is there any alternative path that our understanding of genetics can show so that farmers may obtain maximum yield from their fields? Is there a way to minimise the use of fertilisers and chemicals so that their harmful effects on the environment are reduced? Use of genetically modified crops is a possible solution.

Plants, bacteria, fungi and animals whose genes have been altered by manipulation are called Genetically Modified Organisms (GMO). GM plants have been useful in many ways. Genetic modification has:

1. made crops more tolerant to abiotic stresses (cold, drought, salt, heat);
2. reduced reliance on chemical pesticides (pest-resistant crops);
3. helped to reduce post-harvest losses;
4. increased efficiency of mineral usage by plants (this prevents early exhaustion of fertility of soil);
5. enhanced nutritional value of food, e.g. Golden rice, i.e. Vitamin 'A' enriched rice.

In addition to these uses, GM has been used to create tailor-made plants to supply alternative resources to industries, in the form of starches, fuels and pharmaceuticals. Some of the applications of biotechnology in agriculture that you will study in detail are the production of pest-resistant plants, which could decrease the amount of pesticide used. Bt toxin is produced by a bacterium called Bacillus thuringiensis (Bt for short). Bt toxin gene has been cloned from the bacteria and been expressed in plants to provide resistance to insects without the need for insecticides; in effect it created a bio-pesticide. Examples are Bt cotton, Bt corn, rice, tomato, potato and soyabean etc.

Bt cotton

Some strains of Bacillus thuringiensis produce proteins that kill certain insects such as lepidopterans (tobacco budworm, armyworm), coleopterans (beetles) and dipterans (flies, mosquitoes). B. thuringiensis forms protein crystals during a particular phase of their growth. These crystals contain a toxic insecticidal protein. Why does this toxin not kill the Bacillus? The Bt toxin protein exists as inactive protoxins, but once an insect ingests the inactive toxin, it is converted into an active form of toxin due to the alkaline pH of the gut, which solubilise the crystals. The activated toxin binds to the surface of midgut epithelial cells and creates pores that cause cell swelling and lysis and eventually cause death of the insect.

Specific Bt toxin genes were isolated from Bacillus thuringiensis and incorporated into several crop plants such as cotton. The choice of genes depends upon the crop and the targeted pest, as most Bt toxins are insect-group specific. The toxin is coded by a gene cry. There are a number of them; for example, the proteins encoded by the genes cryIAc and cryIIAb control the cotton bollworms, that of cryIAb controls corn borer.

Pest-resistant plants by RNA interference

Several nematodes parasitise a wide variety of plants and animals, including human beings. A nematode Meloidogyne incognitia infects the roots of tobacco plants and causes a great reduction in yield. A novel strategy was adopted to prevent this infestation, which was based on the process of RNA interference (RNAi). RNAi takes place in all eukaryotic organisms as a method of cellular defence. This method involves silencing of a specific mRNA due to a complementary dsRNA molecule that binds to and prevents translation of the mRNA (silencing). The source of this complementary RNA could be from an infection by viruses having RNA genomes or mobile genetic elements (transposons) that replicate via an RNA intermediate.

Using Agrobacterium vectors, nematode-specific genes were introduced into the host plant. The introduction of DNA was such that it produced both sense and anti-sense RNA in the host cells. These two RNAs, being complementary to each other, formed a double-stranded (dsRNA) that initiated RNAi and thus silenced the specific mRNA of the nematode. The consequence was that the parasite could not survive in a transgenic host expressing specific interfering RNA. The transgenic plant therefore got itself protected from the parasite.

3. Biotechnological Applications in Medicine

The recombinant DNA technological processes have made immense impact in the area of healthcare by enabling mass production of safe and more effective therapeutic drugs. Further, the recombinant therapeutics do not induce unwanted immunological responses, as is common in case of similar products isolated from non-human sources. At present, about 30 recombinant therapeutics have been approved for human use the world over. In India, 12 of these are presently being marketed.

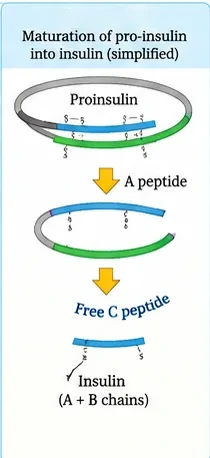

Genetically engineered insulin

Management of adult-onset diabetes is possible by taking insulin at regular time intervals. What would a diabetic patient do if enough human insulin was not available? If you discuss this, you will soon realise that one would have to isolate and use insulin from other animals. Would the insulin isolated from other animals be just as effective as that secreted by the human body itself, and would it not elicit an immune response in the human body? Now, imagine if bacterium were available that could make human insulin. Suddenly the whole process becomes so simple. You can easily grow a large quantity of the bacteria and make as much insulin as you need.

Think about whether insulin can be orally administered to diabetic people or not. Why? (It is a protein and would be digested.) Insulin used for diabetes was earlier extracted from the pancreas of slaughtered cattle and pigs. Insulin from an animal source, though, caused some patients to develop allergy or other types of reactions to the foreign protein. Insulin consists of two short polypeptide chains: chain A and chain B, that are linked together by disulphide bridges. In mammals, including humans, insulin is synthesised as a pro-hormone (like a pro-enzyme, the pro-hormone also needs to be processed before it becomes a fully mature and functional hormone), which contains an extra stretch called the C peptide. This C peptide is not present in the mature insulin and is removed during maturation into insulin. The main challenge for production of insulin using rDNA techniques was getting insulin assembled into a mature form. In 1983, Eli Lilly, an American company, prepared two DNA sequences corresponding to A and B chains of human insulin and introduced them in plasmids of E. coli to produce insulin chains. Chains A and B were produced separately, extracted and combined by creating disulfide bonds to form human insulin.

Gene therapy

If a person is born with a hereditary disease, can a corrective therapy be taken for such a disease? Gene therapy is an attempt to do this. Gene therapy is a collection of methods that allows correction of a gene defect that has been diagnosed in a child/embryo. Here genes are inserted into a person's cells and tissues to treat a disease. Correction of a genetic defect involves delivery of a normal gene into the individual or embryo to take over the function of and compensate for the non-functional gene.

The first clinical gene therapy was given in 1990 to a 4-year-old girl with adenosine deaminase (ADA) deficiency. This enzyme is crucial for the immune system to function. The disorder is caused due to the deletion of the gene for adenosine deaminase. In some children, ADA deficiency can be cured by bone marrow transplantation; in others, it can be treated by enzyme replacement therapy, in which functional ADA is given to the patient by injection. But the problem with both of these approaches is that they are not completely curative. As a first step towards gene therapy, lymphocytes from the blood of the patient are grown in a culture outside the body. A functional ADA cDNA (using a retroviral vector) is then introduced into these lymphocytes, which are subsequently returned to the patient. However, as these cells are not immortal, the patient requires periodic infusion of such genetically engineered lymphocytes. However, if the gene isolated from marrow cells producing ADA is introduced into cells at early embryonic stages, it could be a permanent cure.

Molecular diagnosis

You know that for effective treatment of a disease, early diagnosis and understanding its pathophysiology is very important. Using conventional methods of diagnosis (serum and urine analysis etc.), early detection is not possible. Recombinant DNA technology, Polymerase Chain Reaction (PCR) and Enzyme Linked Immuno-sorbent Assay (ELISA) are some of the techniques that serve the purpose of early diagnosis.

• Presence of a pathogen (bacteria, viruses etc.) is normally suspected only when the pathogen has produced a disease symptom. By this time the concentration of pathogen is already very high in the body. However, very low concentration of a bacteria or virus (at a time when the symptoms of the disease are not yet visible) can be detected by amplification of their nucleic acid by PCR. Can you explain how PCR can detect very low amounts of DNA? PCR is now routinely used to detect HIV in suspected AIDS patients. It is being used to detect mutations in genes in suspected cancer patients too. It is a powerful technique to identify many other genetic disorders.
• A single-stranded DNA or RNA, tagged with a radioactive molecule (probe), is allowed to hybridise to its complementary DNA in a clone of cells, followed by detection using autoradiography. The clone having the mutated gene will hence not appear on the photographic film, because the probe will not have complementarity with the mutated gene.
• ELISA is based on the principle of antigen–antibody interaction. Infection by pathogen can be detected by the presence of antigens (proteins, glycoproteins etc.) or by detecting the antibodies synthesised against the pathogen.

4. Transgenic Animals

Animals that have had their DNA manipulated to possess and express an extra (foreign) gene are known as transgenic animals. Transgenic rats, rabbits, pigs, sheep, cows and fish have been produced, although over 95 per cent of all existing transgenic animals are mice. Why are these animals being produced? How can man benefit from such modifications? Let us try and explore some of the common reasons:

1. Normal physiology and development: transgenic animals can be specifically designed to allow the study of how genes are regulated, and how they affect the normal functions of the body and its development, e.g. study of complex factors involved in growth such as insulin-like growth factor. By introducing genes from other species that alter the formation of this factor and studying the biological effects that result, information is obtained about the biological role of the factor in the body.
2. Study of disease: many transgenic animals are designed to increase our understanding of how genes contribute to the development of disease. These are specially made to serve as models for human diseases so that investigation of new treatments for diseases is made possible. Today transgenic models exist for many human diseases such as cancer, cystic fibrosis, rheumatoid arthritis and Alzheimer's.
3. Biological products: medicines required to treat certain human diseases can contain biological products, but such products are often expensive to make. Transgenic animals that produce useful biological products can be created by the introduction of the portion of DNA (or genes) which codes for a particular product, such as human protein (α-1-antitrypsin) used to treat emphysema. Similar attempts are being made for treatment of phenylketonuria (PKU) and cystic fibrosis. In 1997, the first transgenic cow, Rosie, produced human protein-enriched milk (2.4 grams per litre). The milk contained the human alpha-lactalbumin and was nutritionally a more balanced product for human babies than natural cow milk.
4. Vaccine safety testing: transgenic mice are being developed for use in testing the safety of vaccines before they are used on humans. Transgenic mice are being used to test the safety of the polio vaccine. If successful and found to be reliable, they could replace the use of monkeys to test the safety of batches of the vaccine.
5. Chemical safety testing: this is known as toxicity/safety testing. The procedure is the same as that used for testing toxicity of drugs. Transgenic animals are made that carry genes which make them more sensitive to toxic substances than non-transgenic animals. They are then exposed to the toxic substances and their effects studied. Toxicity testing in such animals will allow us to obtain results in less time.

5. Ethical Issues

The manipulation of living organisms by the human race cannot go on any further without regulation. Some ethical standards are required to evaluate the morality of all human activities that might help or harm living organisms. Going beyond the morality of such issues, the biological significance of such things is also important. Genetic modification of organisms can have unpredictable results when such organisms are introduced into the ecosystem. Therefore, the Indian Government has set up organisations such as GEAC (Genetic Engineering Appraisal Committee), which will make decisions regarding the validity of GM research and the safety of introducing GM-organisms for public services.

The modification/usage of living organisms for public services (as food and medicine sources, for example) has also created problems with patents granted for the same. There is growing public anger that certain companies are being granted patents for products and technologies that make use of the genetic materials, plants and other biological resources that have long been identified, developed and used by farmers and indigenous people of a specific region/country.

Rice is an important food grain, the presence of which goes back thousands of years in Asia's agricultural history. There are an estimated 200,000 varieties of rice in India alone. The diversity of rice in India is one of the richest in the world. Basmati rice is distinct for its unique aroma and flavour, and 27 documented varieties of Basmati are grown in India. There is reference to Basmati in ancient texts, folklore and poetry, as it has been grown for centuries. In 1997, an American company got patent rights on Basmati rice through the US Patent and Trademark Office. This allowed the company to sell a "new" variety of Basmati in the US and abroad. This "new" variety of Basmati had actually been derived from Indian farmers' varieties. Indian Basmati was crossed with semi-dwarf varieties and claimed as an invention or a novelty. The patent extends to functional equivalents, implying that other people selling Basmati rice could be restricted by the patent. Several attempts have also been made to patent uses, products and processes based on Indian traditional herbal medicines, e.g. turmeric and neem. If we are not vigilant and we do not immediately counter these patent applications, other countries/individuals may encash on our rich legacy and we may not be able to do anything about it.

Biopiracy is the term used to refer to the use of bio-resources by multinational companies and other organisations without proper authorisation from the countries and people concerned, without compensatory payment. Most of the industrialised nations are rich financially but poor in biodiversity and traditional knowledge. In contrast, the developing and the underdeveloped world is rich in biodiversity and traditional knowledge related to bio-resources. Traditional knowledge related to bio-resources can be exploited to develop modern applications and can also be used to save time, effort and expenditure during their commercialisation. There has been growing realisation of the injustice, inadequate compensation and benefit sharing between developed and developing countries. Therefore, some nations are developing laws to prevent such unauthorised exploitation of their bio-resources and traditional knowledge. The Indian Parliament has recently cleared the second amendment of the Indian Patents Bill, which takes such issues into consideration, including patent terms emergency provisions and research and development initiative.

6. Master Summary Table

7. Mind Map

8. Tips and Tricks

9. Important One-liners

• Golden rice is enriched with vitamin A.
• Bt toxin kills lepidopterans, coleopterans and dipterans.
• The Bt toxin creates pores in midgut epithelial cells.
• RNAi is a cellular defence mechanism of all eukaryotes.
• Meloidogyne incognitia infects tobacco roots.
• About 30 recombinant therapeutics are approved worldwide; 12 are marketed in India.
• Insulin cannot be taken orally because it is a protein and would be digested.
• ADA deficiency is due to deletion of the adenosine deaminase gene.
• ELISA is based on antigen–antibody interaction.
• Transgenic mice can replace monkeys for polio vaccine testing.
• GEAC decides on the safety of releasing GM organisms.
• India has about 200,000 varieties of rice.

10. NEET-pattern Questions with Detailed Answers

These questions are original and based on concepts that NEET UG asks again and again.

11. Quick Revision Summary
